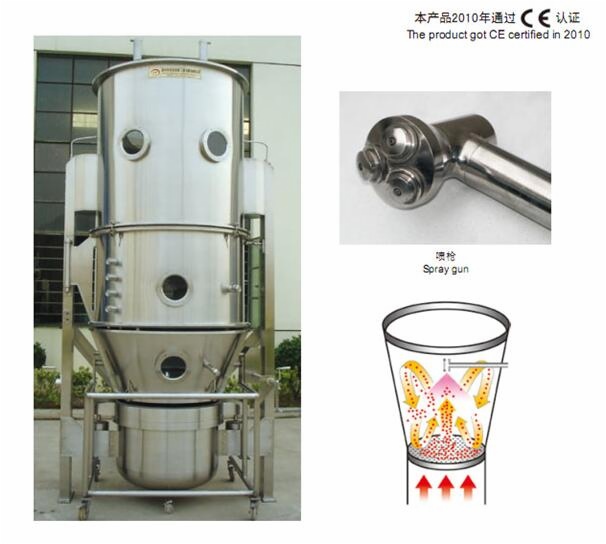

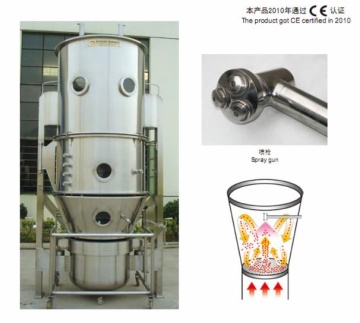

Production line : Fluid Bed Dryer/Granulator (One-Pot Granulation)
Technical data
Model
|
FL
|
5
|
15
|
30
|
60
|
120
|
200
|
300
|
500
|
Capacity
|
kg/b
|
5
|
15
|
30
|
60
|
120
|
200
|
300
|
500
|
Container volume
|
Liter
|
22
|
45
|
100
|
220
|
420
|
670
|
1000
|
1500
|
Container diameter
|
mm
|
500
|
550
|
700
|
1000
|
1200
|
1400
|
1600
|
1800
|
Power of ventilation fan
|
kW
|
3
|
5.5
|
7.5
|
11
|
18.5
|
22
|
30
|
45
|
Granulating time
|
min
|
5-7
|
5-7
|
5-7
|
5-7
|
5-7
|
5-7
|
5-7
|
5-7
|
Steam working pressure
|
MPa
|
0.4~0.6
|
Steam consumption
|
m3/min
|
0.3
|
0.6
|
0.9
|
0.9
|
0.9
|
1.1
|
1.1
|
1.5
|
Power supply
|
|
3-phase/380V/50Hz
|
Dimensions
|
|
as per design
|
NOTE: The data above is for reference only and subject to change.
Configuration List (FL-120)
nr.
|
Item
|
Qty
|
MOC
|
Specifications
|
Comments
|
1
|
Air filtration unit
|
|
|
|
|
1-1
|
housing
|
1 unit
|
SS304
|
δ=1.5mm
|
|
1-2
|
pre-filter
|
1 unit
|
SS
|
|
|
1-3
|
intermediate filter
|
1 unit
|
|
|
|
1-4
|
HEPA filter
|
1 unit
|
|
|
|
1-5
|
filter house
|
1 unit
|
SS304
|
δ=1.5mm
|
|
2
|
Heat exchanger
|
|
|
|
|
2-1
|
housing
|
1 unit
|
SS304
|
δ=1.5mm
|
|
2-2
|
radiator
|
1 set
|
|
60m2
|
|
2-3
|
steam valve
|
1 unit
|
|
DN40
|
|
2-4
|
gas trap
|
1 unit
|
|
DN40
|
|
2-5
|
thermal sensor
|
1 unit
|
|
PT-100
|
|
2-6
|
hot air pipe
|
1 unit
|
SS304
|
Φ315, δ=1.5mm
|
|
3
|
Main machine
|
|
|
|
|
3-1
|
bottom drum
|
1 unit
|
SS304
|
δ=3mm
|
|
3-2
|
trolley
|
1 unit
|
SS304
|
|
|
3-3
|
product container
|
1 unit
|
SS304
|
δ=3mm
|
|
3-4
|
sampling port
|
1 unit
|
SS304
|
|
|
3-5
|
atomization chamber (middle drum)
|
1 unit
|
SS304
|
δ=3mm
|
|
3-6
|
top spray gun
|
1 unit
|
SS304
|
|
|
3-7
|
peristaltic pump
|
1 unit
|
|
300mm/1515
|
|
3-8
|
trap bag container (top drum)
|
1 unit
|
SS304
|
δ=3mm
|
|
3-9
|
bag
|
2 sets
|
CCP anti-static cloth
|
|
|
3-10
|
pillar
|
2 units
|
SS cladded
|
|
|
4
|
Ventilation system
|
|
|
|
|
4-1
|
exhaust air tee
|
1 unit
|
SS304
|
δ=1.5mm
|
|
4-2
|
exhaust air duct (straight)
|
1 unit
|
SS304
|
Φ280
δ=1.5mm
|
|
4-3
|
thermal sensor
|
1 unit
|
|
PT-100
|
|
4-4
|
exhaust air elbow
|
1 unit
|
SS304
|
Φ280*90°
δ=1.5mm
|
|
4-5
|
ventilation fan
|
1 unit
|
A3
|
9-19NO6.3A 18.5W
|
|
4-6
|
muffle
|
1 unit
|
Mild steel
|
|
|
5
|
Control system
|
|
|
|
|
5-1
|
control elements
|
1 set
|
|
|
|
5-2
|
execution parts
|
1 set
|
|
|
|
5-3
|
electrical control cabinet
|
1 unit
|
AA
|
δ=1.5mm
|
|
5-4
|
touch panel
|
1 unit
|
|
Kinco7”
|
|
5-5
|
PLC
|
1 unit
|
LG
|
|
|
5-6
|
electric components
|
1 set
|
|
|
|
