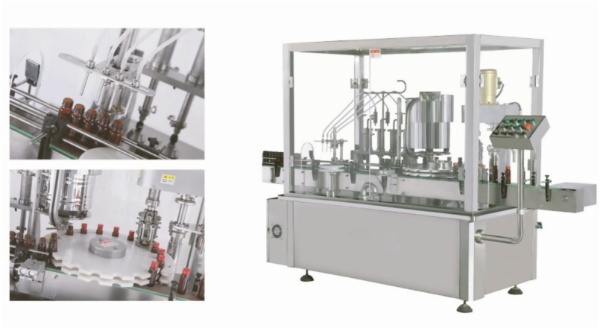

Production line: YG4/1 Four Pumps Filling and Capping Monobloc

Main Technical Parameter

Filling nozzles: 4头

Capping heads: 1头

Filling range: 20-500ml

Idea filling range: 20-50ml;50-150ml;100-250ml;250-500ml

Alternative cap type：Pilfer-proof cap, Screw cap, alum. ROPP cap

Production capacity: 2400-3000 bph

Filling precision: ≤±1%

Qualified capping: ≥99.8%

Power Supply: 220/380V 50/60Hz

Power consumption: ≤1.2KW

Air pressure range: 0.4-0.6 Mpa

Net Weight: 800KG

Overall dimension (mm): 1800*1000*1600
