SSL-100

Item Code: Features:SSL-100
  • Description

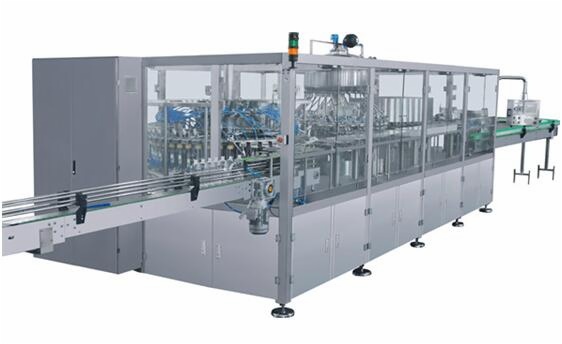

Production line: BOPP Bottle Wash-Fill-Seal Machine

Technical data (Model SSL-100)



Applicable bottle

mL

100/500/1000

Output

BPH

6000 (as 250mL bottle)

Quantity of air washing head



36

Quantity of filling head



18

Quantity of sealing head



32







Filling tolerance



<±1.5% (as 250mL bottle)

Successful capping rate



≥99.9%

Qualified product rate



≥ 99.5%







Power supply



3-Phase 380V 50Hz

Main motor

kilowatt

3.0

Cap vibrator

kilowatt

0.5

Ionized air blower

kilowatt

0.25*6

Conveyor motor

kilowatt

0.37

Heating plate

kilowatt

6*2

Dust collector motor

kilowatt

2.2







(purified) Air working pressure

MPa

0.5~0.7

(purified) Air consumption

m3/min

3~4

Dimensions of main machine (L*W*H)

mm

3750*1970*2060

Machine weight

kilogram

5000
