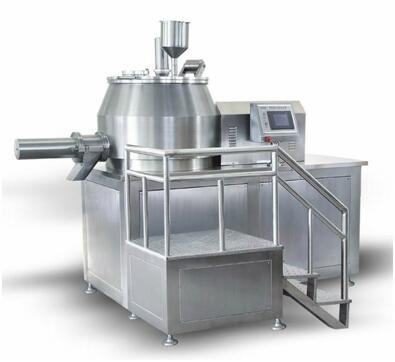

Production line : High ShearGranulator / Wet Granulator
Technical data
Model
|
GHL
|
7/2.5
|
10
|
50
|
100
|
150
|
Volume (max.)
|
Liter
|
7-2.5
|
10
|
50
|
100
|
150
|
Capacity
|
kg/b
|
0.3~1
|
3
|
15
|
35
|
50
|
Agitator motor
|
kW
|
0.75
|
2.2
|
4/5.5
|
6.5/8
|
6.5/8
|
Stirring speed
|
RPM
|
30-1000
|
30-600
|
200/400
|
200/400
|
180/270
|
Chopper motor
|
kW
|
0.75
|
1.1
|
1.3/1.8
|
2.4/3
|
4.5/5.5
|
Chopper speed
|
RPM
|
300-3000
|
300-3000
|
1500/3000
|
1500/3000
|
1500/3000
|
Granulating time
|
min
|
5-7
|
5-7
|
5-7
|
5-7
|
5-7
|
Air consumption
|
m3/h
|
/
|
0.1
|
0.11
|
0.13
|
0.2
|
Dimensions
|
|
|
|
|
|
|
L
|
mm
|
800
|
1250
|
1730
|
1950
|
1950
|
W
|
mm
|
450
|
550
|
750
|
750
|
750
|
H
|
mm
|
900
|
1160
|
1610
|
1810
|
1810
|
Power supply
|
3-Phase 380V/50Hz (other on request)
|
Air working pressure
|
0.3~0.6 MPa
|
Model
|
GHL
|
200
|
250
|
300
|
400
|
600
|
Volume (max.)
|
Liter
|
200
|
250
|
300
|
400
|
600
|
Capacity
|
kg/b
|
60
|
80
|
100
|
135
|
200
|
Agitator motor
|
kW
|
11/14
|
11/14
|
13/16
|
18.5/22
|
22/28
|
Stirring speed
|
RPM
|
180/270
|
180/270
|
140/220
|
106/155
|
80/120
|
Chopper motor
|
kW
|
4.5/5.5
|
4.5/5.5
|
4.5/5.5
|
6.5/8
|
9/11
|
Chopper speed
|
RPM
|
1500/3000
|
1500/3000
|
1500/3000
|
1500/3000
|
1500/3000
|
Granulating time
|
min
|
5-7
|
5-7
|
5-7
|
5-7
|
5-7
|
Air consumption
|
m3/h
|
0.25
|
0.25
|
0.3
|
0.4
|
0.4
|
Dimensions
|
|
|
|
|
|
|
L
|
mm
|
2210
|
2210
|
2310
|
2485
|
2585
|
W
|
mm
|
880
|
880
|
1050
|
1080
|
1400
|
H
|
mm
|
2000
|
2000
|
2000
|
2050
|
2100
|
Power supply
|
3-Phase 380V/50Hz (other on request)
|
Air working pressure
|
0.3~0.6 MPa
|
NOTE: The data above is for reference only and subject to change.
