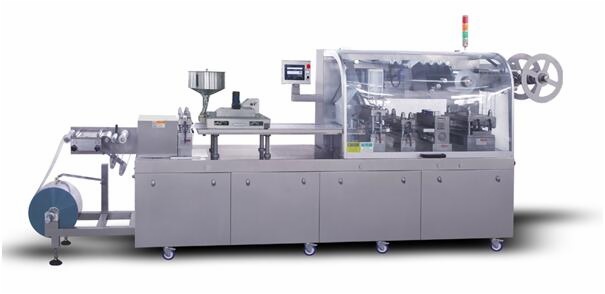

Production line: PVC-ALU/ALU-ALu Blister Packing Machine
Technical Data
Punching speed, AL-AL (max.)
|
cycles/min
|
15-30
|
Punching speed, AL-PVC (max.)
|
cycles/min
|
20-60
|
Film width (max.)
|
mm
|
260
|
Forming area (max.)
|
mm
|
250*110
|
AL-AL cavity forming depth (max.)
|
mm
|
18
|
AL-PVC cavity forming depth (max.)
|
mm
|
22
|
Travel distance range
|
mm
|
30-120
|
Air working pressure
|
MPa
|
0.6-0.8
|
Air consumption
|
m3/min
|
0.25-0.5
|
Power supply
|
|
3-Ph 380V, 50Hz
|
Power consumption
|
kW
|
9.6
|
Dimensions (L*W*H)
|
mm
|
4500*760*1620
|
Net weight
|
kg
|
1800
|
